SikaFast®-5211 NT

SikaFast®-5211 NT

Fast curing, flexibilized, 2-component structural adhesive

SikaFast®-5211 NT is a fast curing, flexibilized, structural, two-part adhesive system, which is based on Sika’s Acrylic Double Performance (ADP) polymer technology.
Uncured SikaFast®-5211 NT is a pasty, non-sagging, hardly inflammable material which allows an easy and precise application. Thanks to its fast cure it allows for fast handling of bonded components. The broad adhesion range enables to bond diverse materials and to replace mechanical fixing.

  • Strength development within minutes after application
  • Adhesion to a wide range of substrates without or with limited surface preparation
  • High strength and impact resistance
  • Solvent and acid free
  • Lower odour than products containing MMA
  • Easy mixing

Product Data Sheet Show all documents

PRODUCT BENEFITS

  • Strength development within minutes after application
  • Adhesion to a wide range of substrates without or with limited surface preparation
  • High strength and impact resistance
  • Solvent and acid free
  • Lower odour than products containing MMA
  • Easy mixing


Usage

SikaFast®-5211 NT is a fast curing, flexibilized structural adhesive designed to replace mechanical fixings such as rivets, screws or welding. It is suitable for high strength fastening of concealed joints and exhibits very good adhesion on different types of substrates including metalls, top coats, plastics, glass, wood, etc. This product is suitable for experienced professional users only. Tests with actual substrates and conditions have to be performed ensuring adhesion and material compatibility.

Packaging

SikaFast®-5211 NT

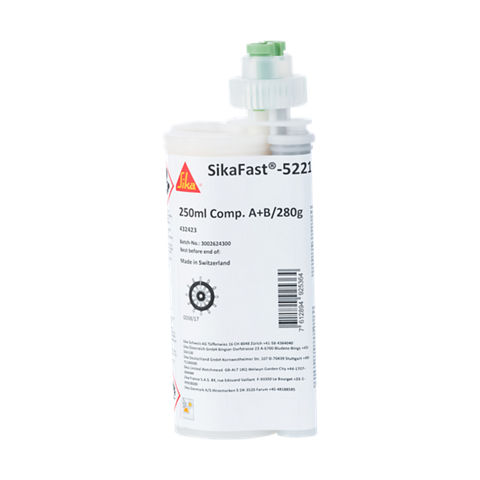

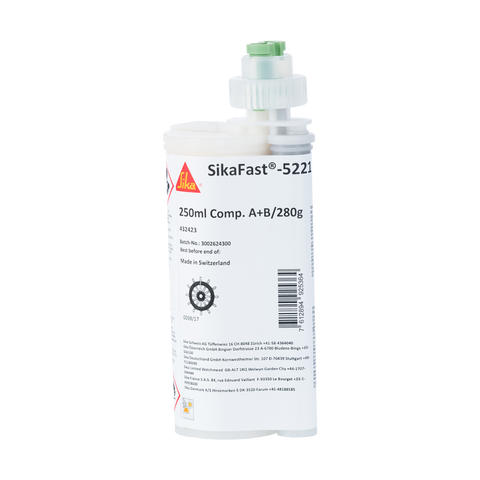

Syringe

Dual cartridge

10 ml

250 ml

SikaFast®-5211 NT (A)

Pail

Drum

20 l

169 l

SikaFast®-5200

Pail

18 l



Product Details

Typical Product Data
Properties

Component A

SikaFast®-5211 NT

Component B

SikaFast®-5200

Chemical base

Acrylate



Color (CQP001-1)



mixed

White

Black

Grey

Cure mechanism

Radical polymerisation



Density



mixed (calculated)

1.15 kg/l

1.5 kg/l

1.19 kg/l

Mixing ratio

by volume

by weight

10 : 1

10 : 1.3

Consistency

Thixotropic paste



Application temperature

5 ─ 40 °C

Open time (CQP526-2)

3 minutes A

Fixing time

time to reach 80 % of torsional strength

9 minutes A

Shore A hardness (CQP023-1 / ISO 48-4)

90

Shore D hardness (CQP023-1 / ISO 48-4)

50

Tensile strength (CQP036-1 / ISO 527)

10 MPa A

Elongation at break (CQP036-1 / ISO 37)

200 % A

E-Modulus (CQP036-1 / ISO 37)

250 MPa A



Tensile lap-shear strength (CQP046-6 / ISO 4587)

10 MPa

Glass transition temperature (CQP509-1 / ISO 6721-2)

60 °C

Service temperature (CQP513-1)

-40 ─ 80 °C

Shelf life

syringe

cartridge

pail / drum

15 months B

9 months B

12 months B

9 months B

CQP = Corporate Quality Procedure

A) 23 °C / 50 % r.h.

B) stored below 25 °C and not exposed to direct sun light
Technical Information

CURE MECHANISM

SikaFast®-5211 NT cures according to radical chain polymerization.
Open and fixture time are influenced by mixing ratio deviations as well as temperature, e.g., as higher the temperature as shorter the open and fixture time and vice versa.
Adjustment of the bonded assembly is only possible within the open time.

CHEMICAL RESISTANCE

In the view of potential chemical or thermal exposure, it is required to conduct a project related testing.

Application

Application Information

Surface Preparation

Surfaces must be clean, dry and free from grease, oil and dust. Remove all loose particles or residues by cleaning it thoroughly, for example with an IPA wipe.
For best adhesion performance on non-porous substrates pre-treat the bonding area with Sika® ADPrep prior to the bonding process.
Due to the diversity of materials, preliminary tests with original substrates are necessary.

Application

SikaFast®-5211 NT is applied with a mixing ratio of 10:1 by volume through a 24 elements static mixer. If applied in large masses, heat is generated by the exothermic reaction. To avoid excessive temperature increase, bond line thickness is limited to 3 mm, but must measure at least 0.5 mm.
Optimum temperature for the bonding process is between 15 °C and 25 °C. The approved temperature range for substrates and adhesive is between 5 °C and 40 °C. The influence of the reactivity by temperature changes has to be respected.



After the open time has elapsed the bonded parts must not be moved against each other anymore. When the fixture time is reached the parts can be moved if no additional stress is distributed to the bond line. For support in evaluation of the appropriate application equipment contact the Sika System Engineering department of Sika Industry.

Removal

Uncured excess of SikaFast®-5211 NT can be removed easily before curing with a dry wipe, with Sika® Remover-208 or another suitable solvent. Once the adhesive is cured it can only be removed mechanically.
Hands and exposed skin shall be washed immediately using Sika® Cleaner-350H towels or a suitable industrial hand cleaner and water.

Do not use solvents on skin.
